Features:

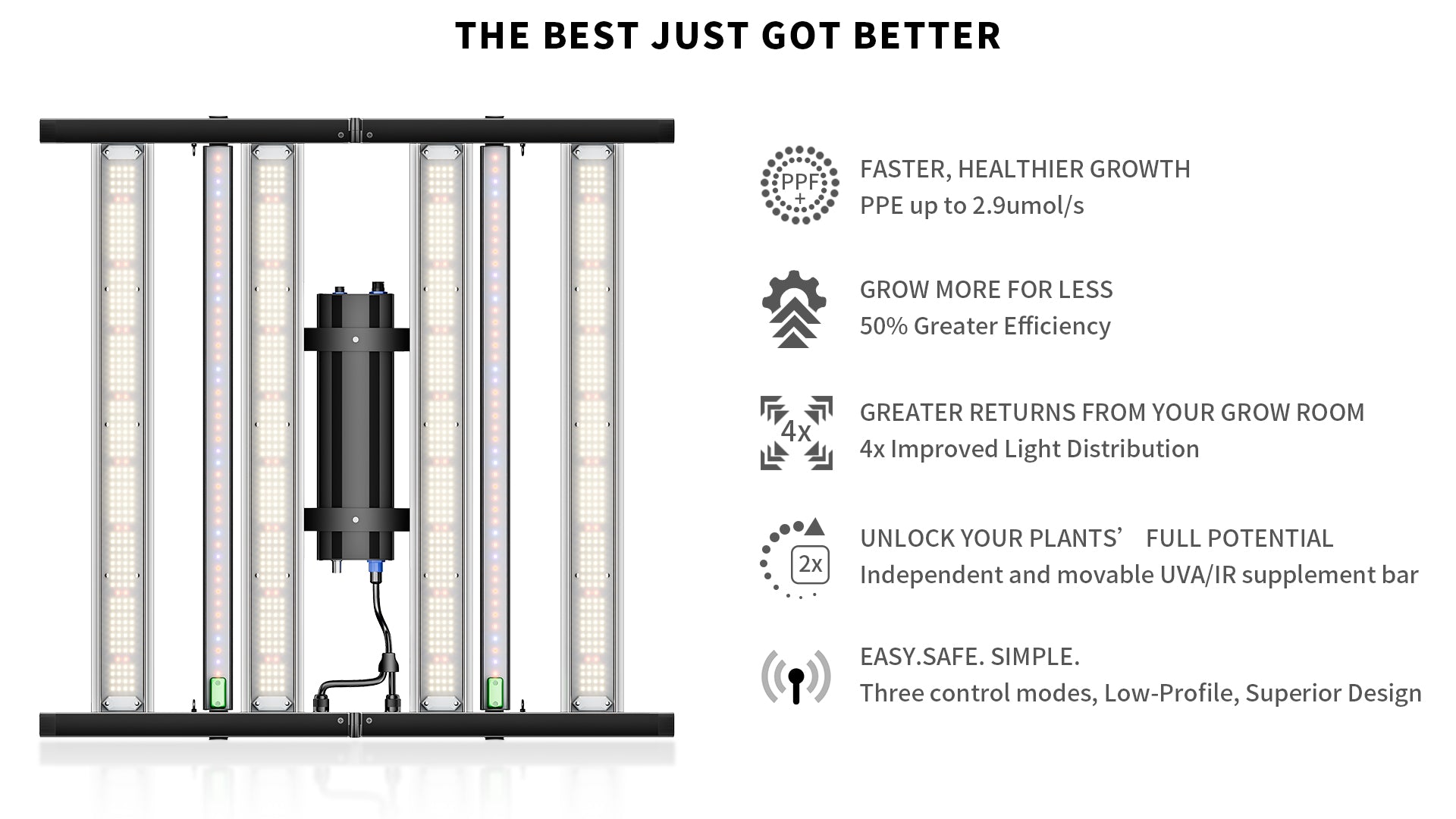

- Homogeneous PAR Distribution: KR320 has 1024 pcs high-quality OSRAM and Epistar chips. The scientific layout of LED chips makes the light more uniform and penetrates better. It can avoid overdrive while achieving an efficiency of 2.9 µmol/j.

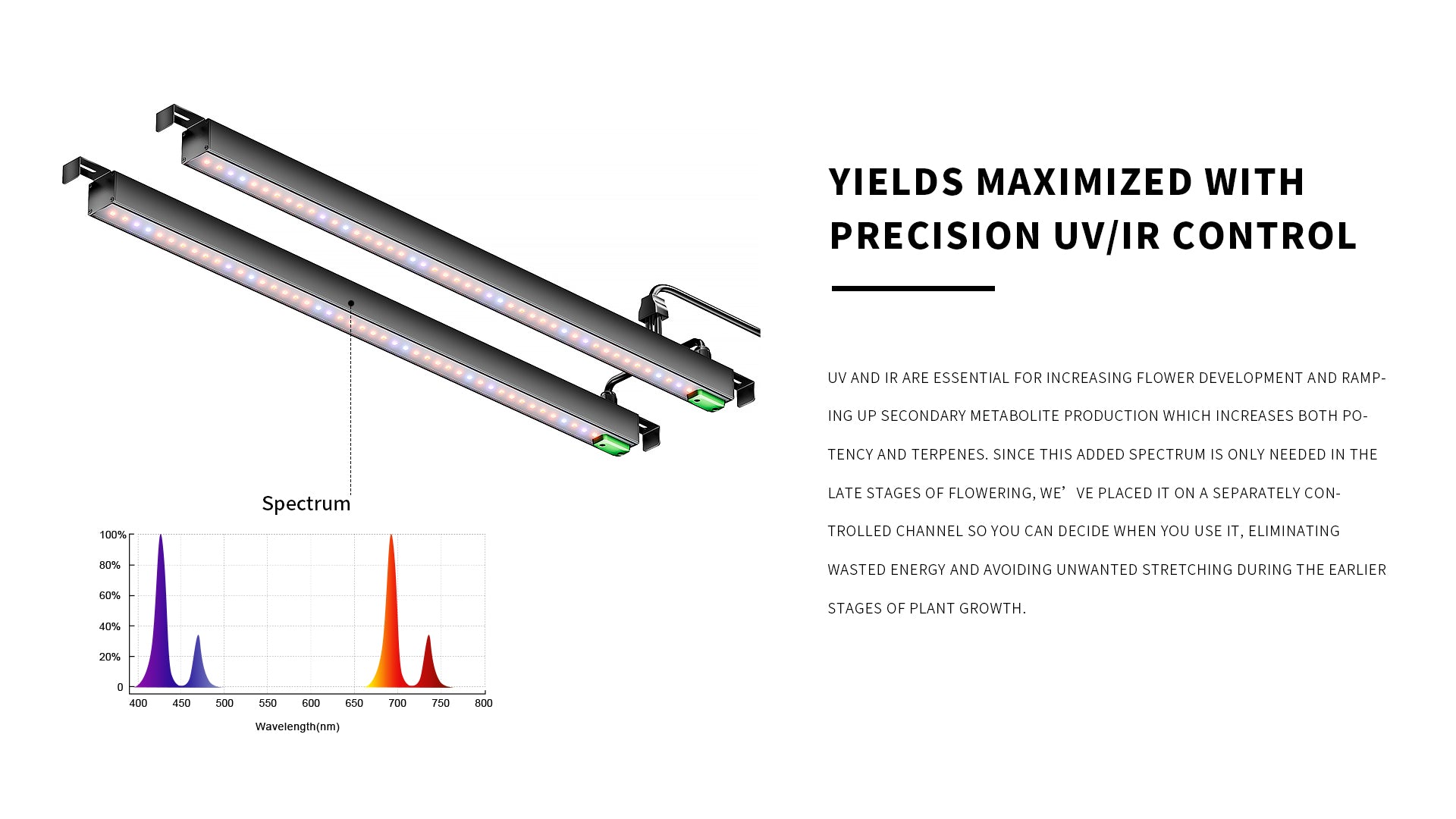

- Special Combination of Spectra: With the addition of UV and IR to the full spectrum, not only does it provide the light needed for the entire growth cycle of the plants, the UV improves plant yield and the IR makes the plants taste better.
- Wifi control function: more powerful management function. Only a mobile phone can control all lights. Timing, group control. Save your time. Suitable for large professional growers.
- Controller function: adapt to all controllers. You can connect our lights to your controller. Not restricted by the brand
- Dimmer Function of Daisy Chain: The dimming function can effectively control the light needed for different growth phases of plants, which is convenient and also does not cause waste of electrical resources. Large area planting can use the daisy chain function to control 80 lights.
- Fast Heat Dissipation: The wavy aluminum heat sink and 20mm passive cooling bar generate less heat and reduce electricity costs by 55% over HID/HPS lights!
Parameter:
| Product Name | KR 320 |
| Actual Wattage (110V) | 320 |
| Actual Wattage (220V) | 310 |
| Dimmable (Yes/No) | YES |
| LED Chip Type | SMD3030 |
| Chips Supplier | OSRAM,EPISTAR |
| Color Rendering Index (CRI) | >85 |
| Lumen Maintenance (Im) | 52467 |
| PPF (umol/s) | 870 |
| PPE (umol/J) | 2.9 |
| PPFD(umol/J/m2) 24" | 1009 |
| PPFD(umol/J/m2) 18" | 1059 |
| PPFD(umol/J/m2) 12" | 1100 |
| Input Voltage (V) | 100-277VAC |
| Frequency (Hz) | 50/60 |
| Power Factor (PF) | >0.95 |
| Output current at 100% | 110V=2.9A 220V=1.4A |
|
Housing/Cover Temperature (°C) (@25°C RT) |
55 |
| Operating Temperature (°C) | -10-45 |
| Driving Power Protection For Overheat | YES |
| IP Rating | IP65 |
| Product Material | AL |
| Power Cord | US/EU/AU/JP/UK Power Cord |
| Product Dimension |
795*772*90mm 31.29*30.39*3.54in |
| Product Weight | 9.6kg/21.2ib |
| Certification standards | ETL. FCC. CE |
| Warranty | 5 years |
DAISY CHAIN FUNTION:
- Connect the products in series with RJ11 line
- Adjust the brightness of all lights to 100%
- Connect the power supply (at this time, the brightness of all lights is 100%)
- Adjust the brightness of any lamp, and other lights will synchronize to the adjusted brightness
- WIFI controller connection port. (If you need WIFI control function, please contact us)
